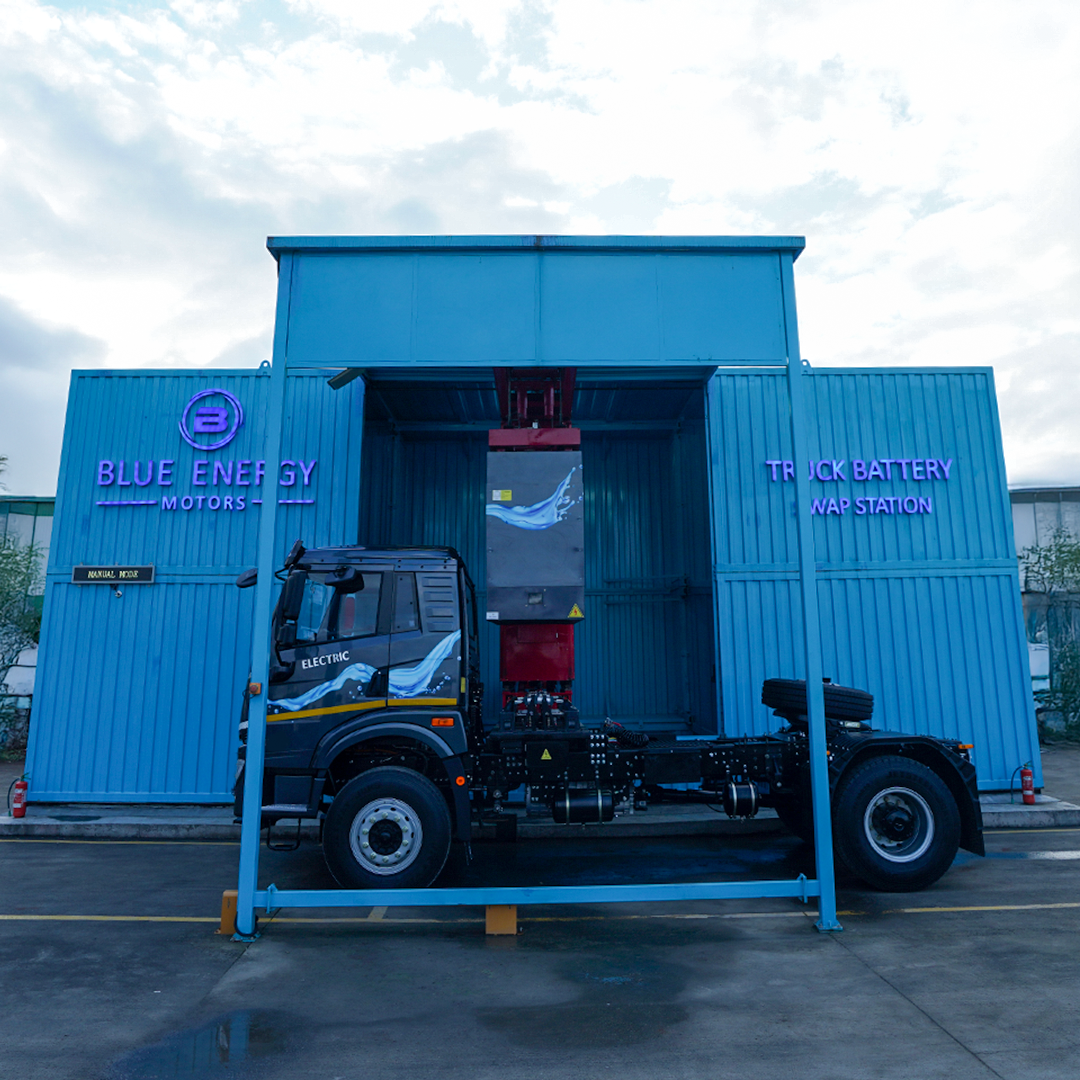

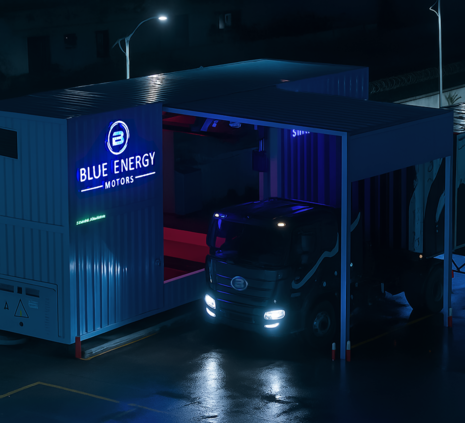

India’s First Fully Automated, Voice-Enabled Unmanned Battery Swap Station for Electric Heavy-Duty Trucks
Complete Battery Swap in < 5 Minutes
Key Features of Battery Swapping Station
Compact Footprint
Smart, space-efficient infrastructure requiring only around 50 square meters, ideal for logistics hubs, depots, and highway corridors.

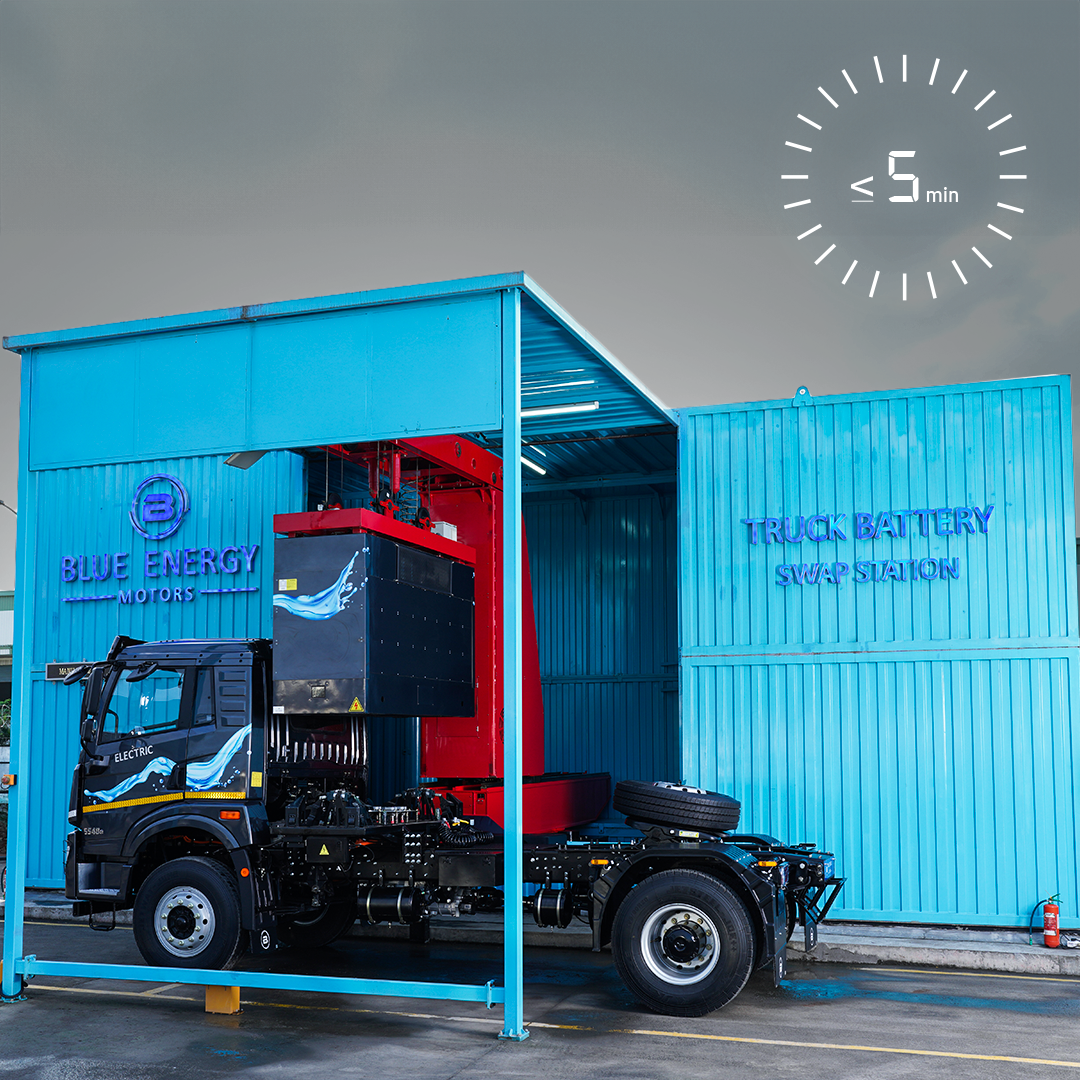

Battery Swap in < 5 Minutes
Quick Swap Mechanism through Robotic Systems to achieve rapid battery exchange
Advanced Intelligent Automation
India’s first fully automated and unmanned battery swapping station, designed for continuous, round-the-clock operation with no human intervention.
Smart Energy Management
Intelligent, Adaptable and Dynamic load balancing for charging to ensure efficient energy consumption.
Swapping Station Specifications
< 5 min
3 nos.
-30 °C to 55°C
720kW
>95%
Fully Automatic
Laser Guided System
RFID vehicle recognition, Display for driver guidance, Voice Commands
Intelligent Air Cooling
GSM/Wifi/LAN
Overload, Overcurrent & Line Surge Protection
Available
Swapping station Specifications
< 5 min
3 nos.
-30 °C to 55°C
720kW
>95%
Fully Automatic
Laser
RFID vehicle recognization Display for driver guidance Voice Commands
Intelligent air cooling
GSM/Wifi/LAN
Overload, Overcurrent & Line Surge protection
Available

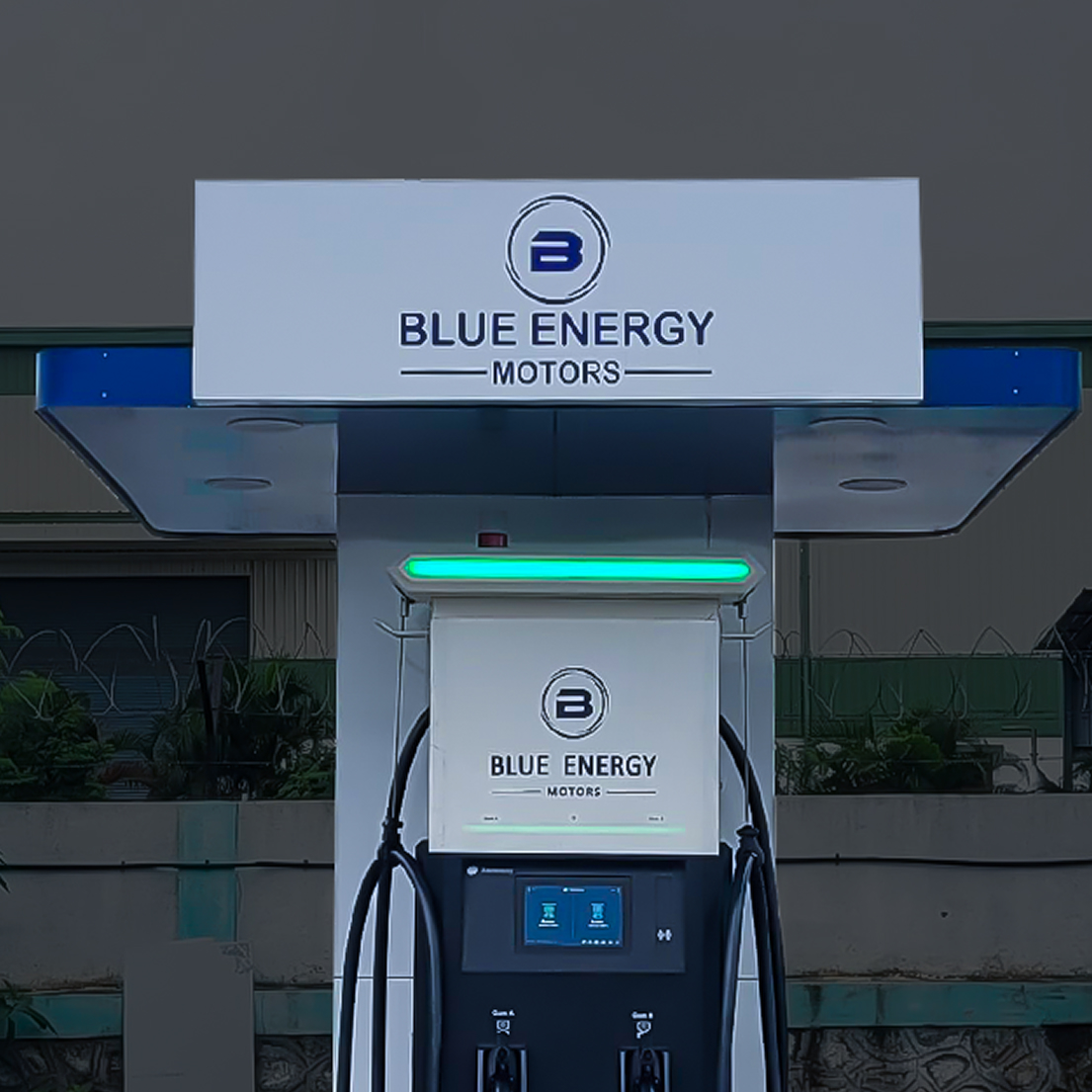

Charging Solution
Replenish the Battery in <60 Min

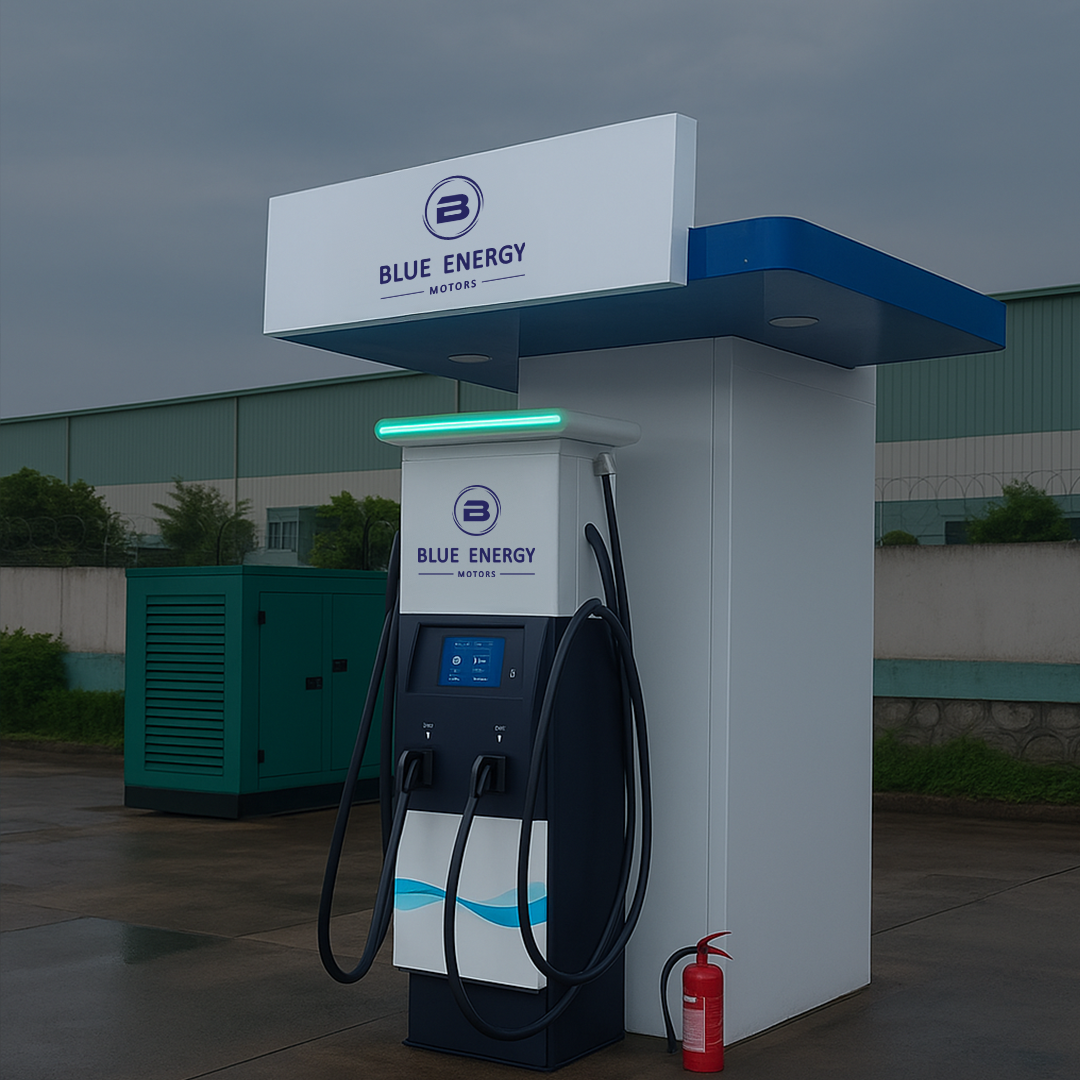

Key Features of the Fixed Charging Station
- High-Power Charging
(240 kW Dual-Gun CCS2) - Full charge in under 60 minutes, enabling maximum uptime.
Modular, Scalable Design
- Global CCS2 standard compliant.
- Modular and Compact scalable for future expansions
Intelligent Remote Monitoring
- Real-time battery and charger analytics for precision control
- Predictive 24×7 remote diagnostics to minimize downtime
Charging Station Specifications
200- 750 VDC
200 A per gun
240 kW
CCS2
2
≥95% for 50% ≤ load ≤ 100%
>0.98
Over current, Under voltage, Over voltage, Residual current, Surge protection, Short circuit, Over temperature, Ground fault, Insulation fault, Emergency Stop
5 meters - retractable type
-20°C to 55°C
5% to 95% non-condensing
Access available for Customer & Driver
